SFR-S1018-A1

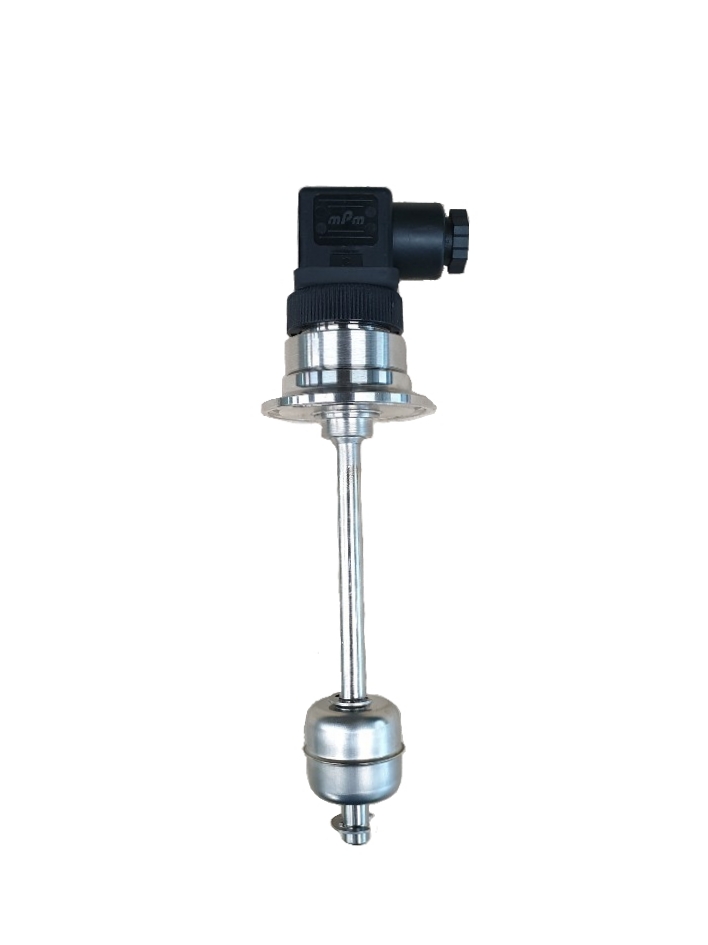

모델명 : SFR-S1018-A1
Material
(재질)
:
* Stem (sus304/sus316)
* Float (sus316L)
* HEAD (CONNECTOR
Switching Current Max
(용량)
:
* DC&AC 100V用 0.5A
* Option DC&AC 250V用 1A
Pressure
(압력)
:
* 8 ㎏f/㎠
Operation Temperature
(온도)
:
* 100 ℃
* Optiom 120 ℃
Suitable S.G
(비중)
:
* 0.6
Reversible Switch Action
(방향)
:
* Yes
Lead Wire
(전선)
:
Mounting Size
(조립)
:
* BLANK 1.5S, 2S, 2.5S ,3S
Applicatioms
(Use for) (사용처)
:
* Water, Oil, medical liquid

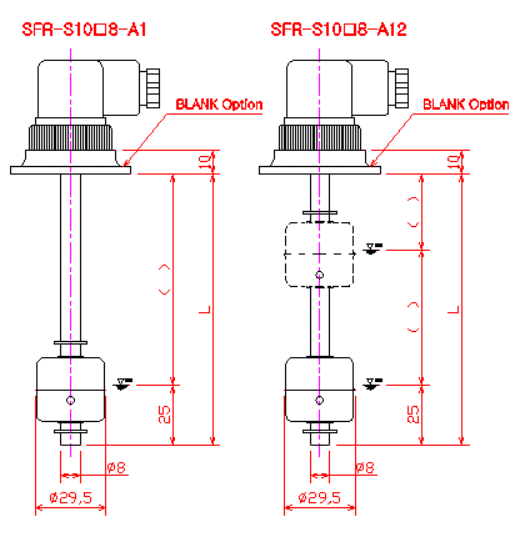

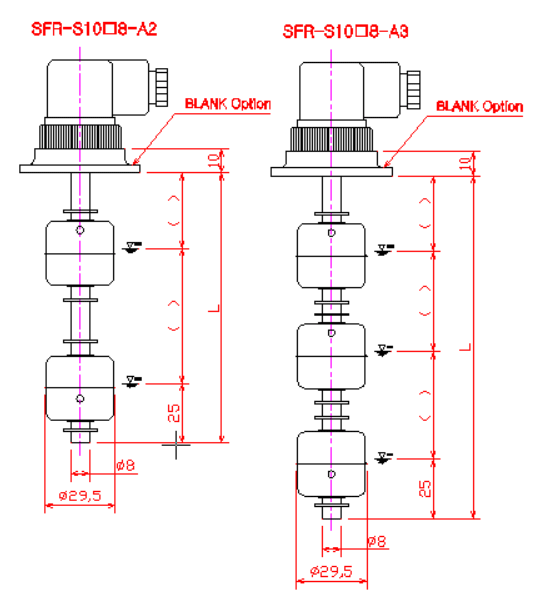

                (SFR-S10 8  Series)





        ( SFR-S1028-A1   1,5S)     ( SFR-S1038-A1    2S)

        ( SFR-S1048-A1    2.5S)    ( SFR-S1058-A1    3S)










                  Option : BLANK 1s,1.5s, 2s, 2.5s ,3S
